CNSELAM HSP series hydraulic slurry pump has the characteristics of strong mobility and high efficiency.
Model :
HSP150Outlet diameter(inch) :
6Max. flow rate(m³/h) :
280-330Max. head(m) :
15-33.5Hydraulic flow rate(L/min) :
60-80Pressure(bar) :
280-300Solid passing(mm) :

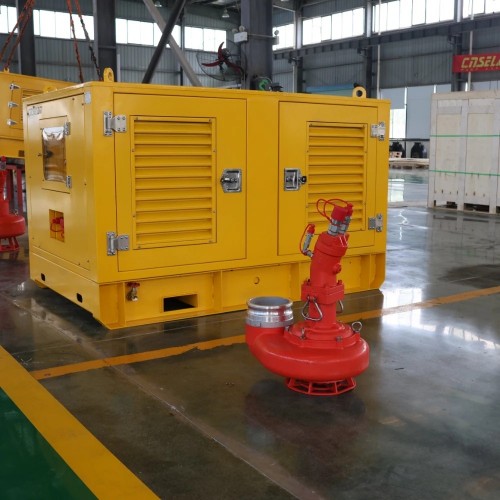

85Scene Pictures
HSP hydraulic slurry pump is made of 304 stainless steel and is designed for conveying media containing solid particles, such as ore slurry, mud, sand and lime slurry, etc. It has a wide range of uses.
Features：
1. The overall design of the pump is light, maneuverable and efficient.
2. The sewage pump impeller adopts a vortex design. The rotation of the impeller makes the liquid or slurry in the pump body move in a circular motion, forming a cone under the action of centrifugal force, reducing the contact between the liquid or slurry and the impeller and reducing friction.
Specifications
| Model | Outlet diameter (inch) |
Max flow rate （m³/h) |
Max head （m） |
Hydraulic flow rate (L/min) |
Pressure (bar) |
Max solid passing (mm) |
| HSP65 | 2.5 | 65-120 | 10-60 | 30-80 | 250-280 | 58 |
| HSP80 | 3 | 65-120 | 10-48 | 40-50 | 200-230 | 58 |
| HSP100 | 4 | 120-250 | 10-50 | 50-60 | 200-230 | 65 |
| HSP150 | 6 | 280-330 | 15-33.5 | 60-80 | 280-300 | 85 |
| HSP200 | 8 | 450-500 | 12-25 | 120-140 | 280-300 | 85 |
（The corresponding hydraulic flow can be matched according to the actual working conditions.）
