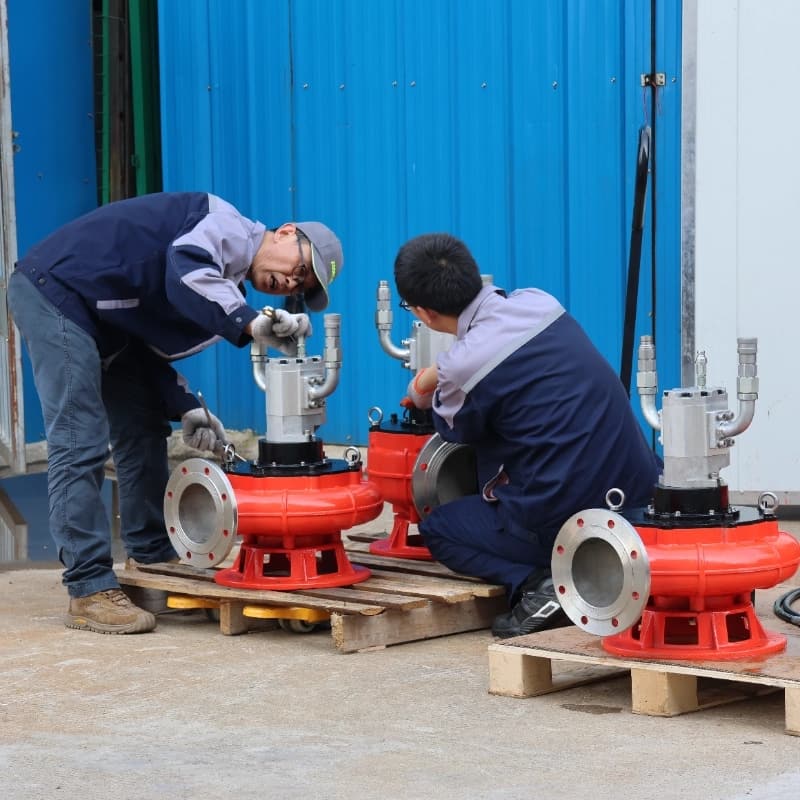

CNSELAM HSP series hydraulic trash pump is very suitable for emergency rescue and drainage, urban flood control, etc.
Model :
HSP200Outlet diameter(inch) :
8Max. flow rate(m³/h) :
450-500Max. head(m) :
0-12Hydraulic flow rate(L/min) :
80-120Pressure(bar) :
140-190Solid passing(mm) :
100Scene Pictures
Fields of product application
Municipal emergency repair and drainage,urban flood control and drainage,inspection well and sewer pipe cleaning and sewage discharge,construction site drainage:water intake from rivers,ditches,and lakes for drought resistance,fire fighting,water supply,sea water extraction,explosion-proof areas,etc.
Specifications
| Model | Outlet diameter (inch) |
Max flow rate （m³/h) |
Max head （m） |
Hydraulic flow rate (L/min) |
Pressure (bar) |
Max solid passing (mm) |
| HSP65 | 2.5 | 65-120 | 10-60 | 30-80 | 250-280 | 58 |
| HSP80 | 3 | 65-120 | 10-48 | 40-50 | 200-230 | 58 |
| HSP100 | 4 | 120-250 | 10-50 | 50-60 | 200-230 | 65 |
| HSP150 | 6 | 280-330 | 15-33.5 | 60-80 | 280-300 | 85 |
| HSP200 | 8 | 450-500 | 12-25 | 120-140 | 280-300 | 85 |
CNSELAM HSP and CHSP series hydraulic slurry pump housing is made of 304 stainless steel and is cast in one piece. We can provide you with customized products according to your parameter requirements on material,flow,hea
Read More
CNSELAM HSP and CHSP series Hydraulic Slurry Pump is a high-performance, durable conveying solution designed for handling high-concentration, highly abrasive, and large-particle slurry. With advanced hydraulic drive technology, it solves the pain points of traditional electric slurry pumps and is widely used in mining, dredging, construction, and emergency rescue projects worldwide.
Read More
CNSELAM HSP series stirring hydraulic slurry pump has the characteristics of stirring function, strong mobility and high efficiency.
Read More
CNSELAM HSP and CHSP series hydraulic slurry pumps are slurry conveying equipment that uses hydraulic motors/hydraulic cylinders as power sources to replace traditional electric motor-driven systems. The core of the system is to use high-pressure hydraulic oil to transmit power and drive the impeller (or piston) to rotate, specifically for conveying slurry containing particulate solids.
Read More
CNSELAM HSP series hydraulic slurry pump has the characteristics of strong mobility and high efficiency.
Read More
CNSELAM HSP series hydraulic slurry pump has the characteristics of light weight and large flow.
Read More
CNSELAM HSP series hydraulic trash pump is very suitable for emergency rescue and drainage, urban flood control, etc.
Read More
