Name: High Head Hydraulic Slurry Pump
Availability: InStock

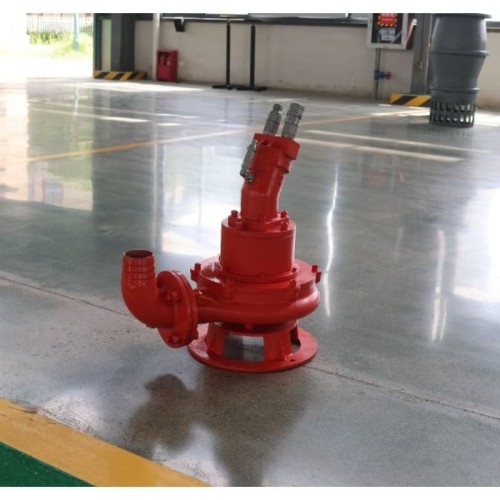

High Head Hydraulic Slurry Pump

CNSELAM HSP and CHSP series hydraulic slurry pump housing is made of 304 stainless steel and is cast in one piece.

Model :
HSP65
Outlet diameter(inch) :
2.5
Max. flow rate(m³/h) :
65-120
Max. head(m) :
10-60
Hydraulic flow rate(L/min) :
30-80
Pressure(bar) :
280
Solid passing(mm) :
58

Inquire Now

Product Details

Scene Pictures

CNSELAM HSP and CHSP series Hydraulic slurry pumps are widely used in urban flood control and drainage, municipal emergency drainage and other scenarios due to their efficient and reliable hydraulic drive technology. They are used for drought relief, fire fighting, water supply, seawater pumping, explosion-proof areas and other rivers, ditches, and lakes.

Features：

1. Hydraulic slurry pumps usually use mechanical seals as shaft sealing devices. Mechanical seals have the advantages of good sealing effect, small leakage and long service life.

2. The overall design of the pump is light, maneuverable and efficient.

Specifications

（We can provide you with customized products according to your parameter requirements on material,flow,head.)

Model	Outlet diameter(inch)	Flow rate(m³/h)	Head(m)	Hydraulic flow rate(L/min)	Pressure(bar)	Solid passing(mm)
HSP65	2.5	65-120	10-60	30-80	280	58
HSP80	3	65-120	10-48	20-80	145	58
HSP100	4	120-250	10-50	30-80	155	65
HSP150	6	280-330	15-33.5	60-100	155-172	85
CHSP150	6	320	25	60-80	172	85
HSP200	8	450-500	0-12	80-120	140-190	100
CHSP200	8	600	25	120-140	230-270	85

Hot Tags :

High Head Hydraulic Slurry Pump

Large flow hydraulic slurry pump

Large flow sewage pump

Flood control hydraulic machine

Pumped storage equipment

Hydraulic slurry pump
