Name: Large Flow Hydraulic Sewage Pump
Availability: InStock

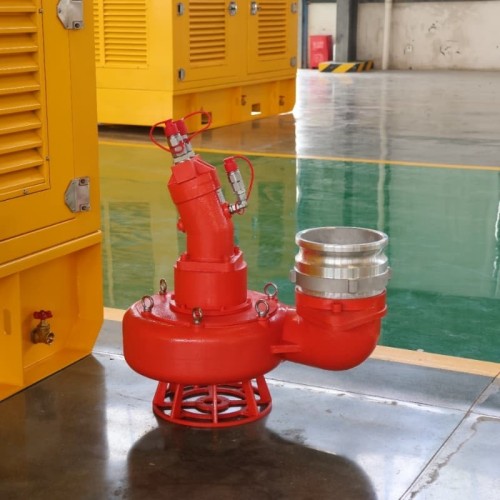

Large Flow Hydraulic Sewage Pump

CNSELAM CHSP series hydraulic slurry pump has the characteristics of light weight and large flow.

Model :
CHSP200
Outlet diameter(inch) :
8
Max. flow rate(m³/h) :
0-600
Max. head(m) :
0-25
Hydraulic flow rate(L/min) :
120-140
Pressure(bar) :
230-270
Solid passing(mm) :
85

Inquire Now

Product Details

Scene Pictures

Hydraulic slurry pumps - also called underwater pumps (or U-pumps for short) that are widely used in water supply and wastewater disposal. They are directly driven by a hydraulic power unit,no risk of electric leakage. It is a high-efficiency, and a good underwater machine.

Features：

1. Features include a longer service life, high reliability, and the ability to extract large solid particles.

2. Hydraulic slurry pump is lightweight design allows for greater mobility and high efficiency.

Specifications

Model	Outlet diameter(inch)	Flow rate(m³/h)	Head(m)	Hydraulic flow rate(L/min)	Pressure(bar)	Solid passing(mm)
HSP65	2.5	65-120	10-60	30-80	280	58
HSP80	3	65-120	10-48	20-80	145	58
HSP100	4	120-250	10-50	30-80	155	65
HSP150	6	280-330	15-33.5	60-100	155-172	85
CHSP150	6	320	25	60-80	172	85
HSP200	8	450-500	0-12	80-120	140-190	100
CHSP200	8	600	25	120-140	230-270	85
