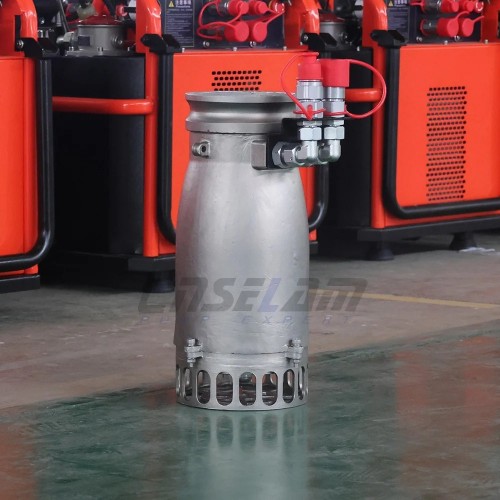

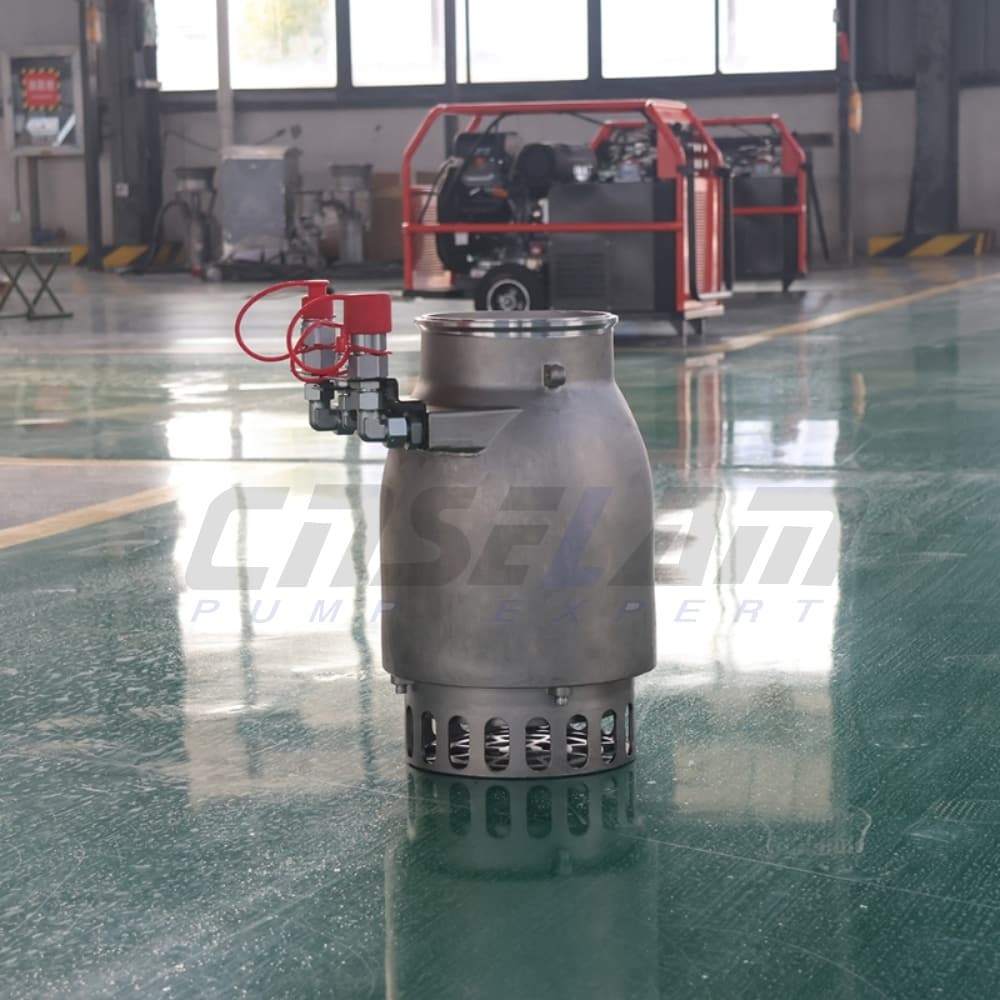

Stainless Steel Hydraulic Bottom Suction Submersible Pump
CNSELAM HSQWP series hydraulic axial flow pump is a type of fluid machinery that is widely used in agricultural irrigation, urban drainage, power industry and other fields.
Model :
HSQWP150DOutlet diameter(inch) :
6Max. flow rate(m³/h) :
180-230Max. head(m) :
6-11Hydraulic flow rate(L/min) :
50-60Pressure(bar) :
155-172Solid passing(mm) :
18
Hydraulic bottom suction submersible pump is an optimized and improved electric portable submersible pump technology combined with the assistance of hydraulic motor and hydraulic power station. This series adopts the structural design of middle inlet and top outlet. The hydraulic motor is located at the bottom of the pump, which makes the structure more stable.
FEATURES
1. Explosion-proof/waterproof: With no motor or electrical components submerged in water, it completely eliminates the risks of leakage, short circuit, and explosion, making it suitable for flammable and explosive, underwater/humid, and power outage emergency scenarios.
2. Bottom suction design: The inlet is at the bottom of the pump body, which can pump the water down to only a few centimeters above the surface, leaving no water residue. It is suitable for emptying water tanks, foundation pits, ship cabins and tunnels.
SPECIFICATION
| Model | Outlet diameter (inch) |
Max flow rate (m³/h) |
Max head (m) |
Hydraulic flow rate (lpm) |
Pressure (bar) |
Max solid passing （mm） |
| HSQWP150D | 6 | 180-230 | 6-11 | 50-60 | 155-172 | 18 |
| HSQWP200D | 8 | 500-600 | 11-15 | 60-80 | 172-180 | 25 |
| HSQWP200 | 8 | 500-600 | 5-10 | 60-80 | 172-180 | 25 |
| HSQWP250 | 10 | 600-1000 | 5-10 | 160-180 | 250-300 | 30 |
| HSQWP300 | 12 | 1000-1200 | 4-8 | 160-180 | 190-230 | 30 |
| HSQWP400~HSQWP600 | 16", 20", 24" | 1800-3600 | 4-8 | 250-300 | 220-330 | 38 |
| HSQWP750~HSQWP800 | 30", 32" | 4600-7200 | 2-6 | 280-300 | 280-350 | 45 |
| HSQWP1000~HSQWP1200 | 40", 42", 48" | 11000-16200 | 2-5 | 500-600 | 280-350 | 65 |
