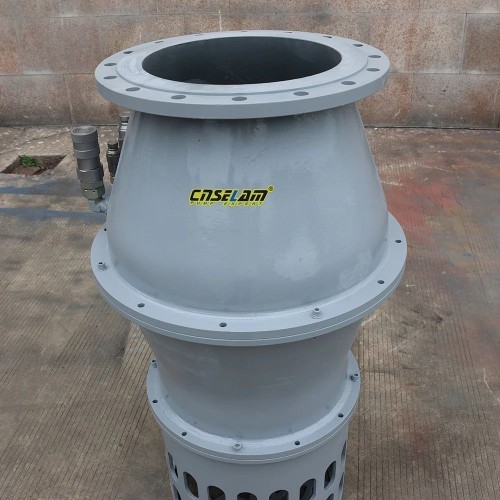

CNSELAM HSQWP series hydraulic axial flow pump is a type of fluid machinery that is widely used in agricultural irrigation, urban drainage, power industry and other fields.
Model :
HSQWP400Outlet diameter(inch) :
16Max. flow rate(m³/h) :
1800-2750Max. head(m) :
3.67-10.04Hydraulic flow rate(L/min) :
250-350Pressure(bar) :
200-330Solid passing(mm) :
38
An axial-flow pump is a type of pump that generates axial thrust through the rotation of an impeller. Its core features include high flow, low head, simple structure, and easy operation. It is suitable for urban flood control and drainage, sewer cleaning and drainage, and agricultural irrigation and drainage
FEATURES
1.The axial flow pump features a waterproof design that dissipates heat effectively, extending bearing life.
2.The pump is submersible, providing excellent cooling and stable operation with minimal vibration
SPECIFICATION
| Model | Outlet diameter (inch) |
Max flow rate (m³/h) |
Max head (m) |
Hydraulic flow rate (lpm) |
Pressure (bar) |
Solid passing （mm） |
Weight (kg) |
Dimension （mm） |
| HSQWP150/D | 6 | 300 | 18 | 50-60 | 172 | 18 | 23 | 280*240*475 |
| HSQWP200/B | 8 | 550 | 10 | 60-80 | 172 | 25 | 18 | 210*280*520 |
| HSQWP200/Z | 8 | 600 | 10 | 60-80 | 172 | 25 | 59 | 350*340*740 |
| HSQWP200/D | 8 | 600 | 15 | 60-80 | 172 | 25 | 25 | 330*285*487 |
| HSQWP250 | 10 | 600-800 | 10 | 60-80 | 172 | 30 | 59 | 350*340*740 |
| HSQWP300H | 12 | 1000-1200 | 8 | 160-180 | 190 | 30 | 49 | 350*330*700 |
| HSQWP300G | 12 | 1200-1500 | 8 | 160-180 | 190 | 30 | 49 | 350*330*660 |
| HSQWP300D | 12 | 1500-1800 | 8 | 180-200 | 190 | 30 | 49 | 350*330*660 |
| HSQWP400 | 16 | 1800-2750 | 3.67-10.04 | 250-350 | 200-330 | 38 | 400 | 700*700*1230 |
| HSQWP500 | 20 | 1890-3570 | 3.53-9.85 | 300-400 | 200-330 | 40 | 430-450 | 720*720*1230 |
| HSQWP750 | 30 | 4600-11500 | 4.17-9.33 | 300-550 | 200-350 | 45 | 900-1100 | // |
| HSQWP1000 | 40/42 | 6000-12500 | 3.6-9.08 | 500-600 | 200-350 | 65 | 1400-1600 | // |
| HSQWP1200 | 48 | 9700-21500 | 3-7.5 | 600-650 | 200-350 | 95 | 1800-2100 | // |
